Electronics for operating turnouts and signals

Expander module

This is the expander unit which adds 16 non-multiplexed outputs.

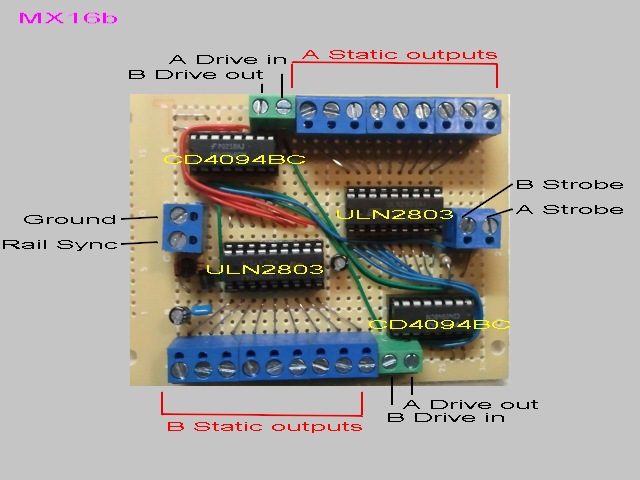

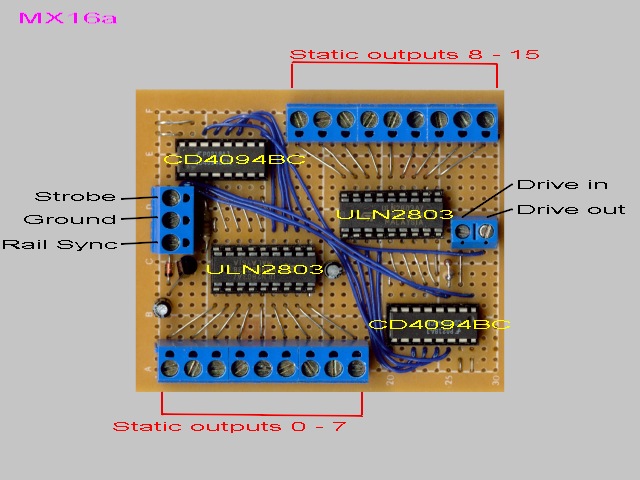

The left image is the original version. On the right is the newer "B" version which adds the ability to seperate the two halves and use with two MD units to add 8 outputs to each.
